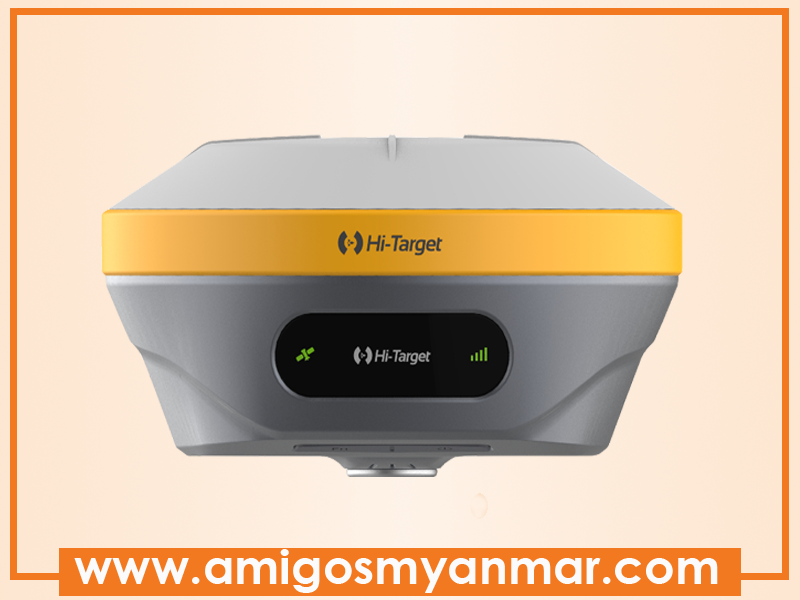

Hi-Target iRTK-4 GNSS RTK System

In Stock

Product SKU: iRTK-4

Brand : Hi-Target
Product SKU : iRTK-4
Country : China

 A Simple but not Simplistic GNSS System

iRTK4 is a full-featured, intelligent GNSS receiver system equipped with an integrated new-generation full-frequency antenna and advanced multi-channel engine, allowing users to attain accurate, reliable solutions. Users can also take advantage of calibration-free Tilt-Surveying without levelling the survey pole to collect point data in more places.

Key Features:

1. New generation advanced RTK engine

Flexible Satellites signal management helps you get the more accurate solution and provides 20 percent improved performance in challenging GNSS environments.

2.IMU (Icon)

Immediately start with calibration-free tilt compensation technology, assist you quickly and accurately survey or stake out points without leveling the pole, Error less than 3cm within 45° inclination, boost working efficiency by 20%.

3.Fast-Charge

Charge your battery to up to 50 percent in just 50 minutes with a 45W adapter, thanks to fast‑charge capability, you can recharge in less time.

4. Web UI

Fast and efficient way to monitor and control hardware devices. In addition, offers access to the most commonly used features via the existing web browser on your device of choice—no need to download or install anything!



Smart Base

Greatly optimize working mode setting, Pairing your Base and Rover automatically by hi-target global service, extending your work range, and saving your time.



New generation external radio

HDL-460A provides reliable data communications for mission-critical applications where a combination of stability, supreme performance, and long range are required.


Contact Us

phone icon09-5025972, 09-400980831

email iconThis email address is being protected from spambots. You need JavaScript enabled to view it.

 Type  : Land
Year of initial introduction : 2020
Housing Material :

Magnesium Alloy

Dimension (W x H)  :

158 mm x 99 mm (6.22 inch x 3.86 inch)

Weight :

lighter than 1.3kg (2.65 lb) within internal battery

Operation temperature :

- 40˚C  to  + 75˚C (-40 ˚F   to  +167 ˚F)

Storage temperature :

- 50˚C  to  + 85˚C (- 58 ˚F   to  +185 ˚F)

Temperature Control : Auto adjust the working power to maintain the temperature
Humidity :

100% condensing

Water / dustproof :

IP 67 dustproof, protected from temporary immersion to depth of 1 m (3.28 ft)
