ACE Digital Vertical Inclinometer Probe
Model : 5410
Country : Korea
Digital vertical inclinometer system has pursued a development by concentrating on high-performance nature such as responsiveness, ultra-light and high-reliability.

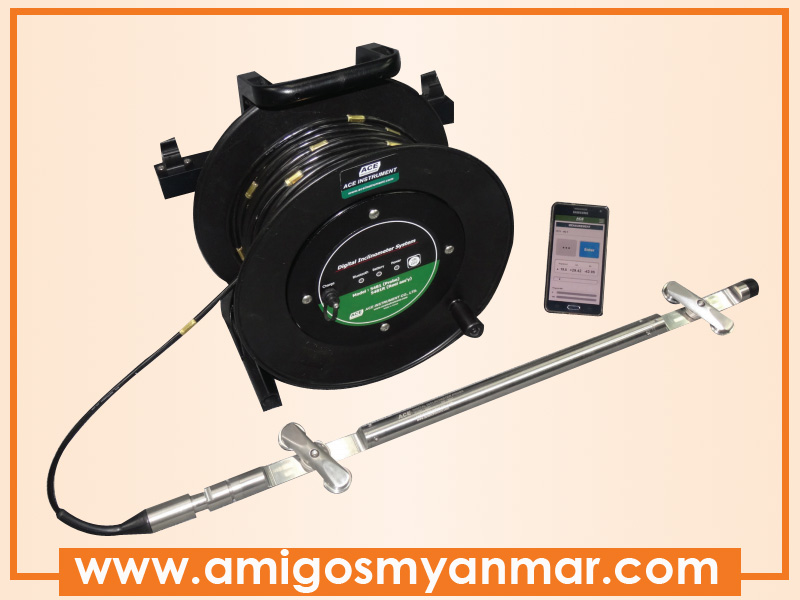

Digital vertical inclinometer system includes a lightweight digital inclinometer probe, Bluetooth reel, cable guide and the software as “Inclinometer Collector” for Android-based device.
In case of installed inclinometer casing at zone of suspected displacement in a vertical borehole, it is possible to acquire the data to smart device through digital inclinometer system.
The data that was acquired at smart device can be transferred to PC by e-mail and it is operated by Geopro software program.
Digital inclinometer probe provides excellent resolution and accuracy because it built in 30 MEMS inclined acceleration sensor and 2-axis electronic circuit inside.
Contact Us
09-5025972, 09-443087709, 09-777258535, 09-254629088, 09-403997619
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Digital inclinometer probe | ||
| Applied sensor | : | 2-MEMS sensor |
| Measuring Range | : | ±30º |
| Resolution | : | 0.005mm/500mm |
| Rating output | : | Digital |
| Nonlinearity | : | 0.02% FSR/ 10 |
| Repeatability | : | ±0.003º |
| Shock coefficient | : | 2000g |
| Opeating Temp. | : | -20º~70ºC |
| Wheel gage length | : | 500mm |
| System accuracy | : | ±2mm/25m |
| Dimension | : | Ø25.4x687mm |
| Weight | : | 1.3kg |
| Material | : | Stainless steel |
| Accessories | : | Carry bag, Spanner |
| Control cable | ||
| Operating Temp. | : | -25~80C |
| Stiffener | : | 3mm Kevlar (Aramid fiber) |
| Outer diameter | : | 6.0mm |
| Wire | : | 0.3mm2x5C |
| Max.tensile strength | : | 200kg |
| Material of cable | : | Polyurethane rubber |
| Weight | : | About 3.3kg/50m |
| Cable guide | ||
| Material | : | Aluminum |
| Weight | : | 0.3kg |
| Applied casing | : | Outer diameter Ø70, Ø85 mm casing |
| Bluetooth reel | ||
| Material | : | Polycarbonate |
| Dimension | : | 350(W)x250(D)x360(H)mm |
| Status display | : | Power, Bluetooth, Charge |
| Convenience | : | ON/OFF Switch Probe holder Cable guide holder |
| Battery | : | Ni-MH 7.2V |
| Weight | : | 2.0kg |
| Operation time | : | Cont 40 Hr |
| Charging time | : | Cont 7Hr |
| Accessories | : | Charge, Carry bag |
