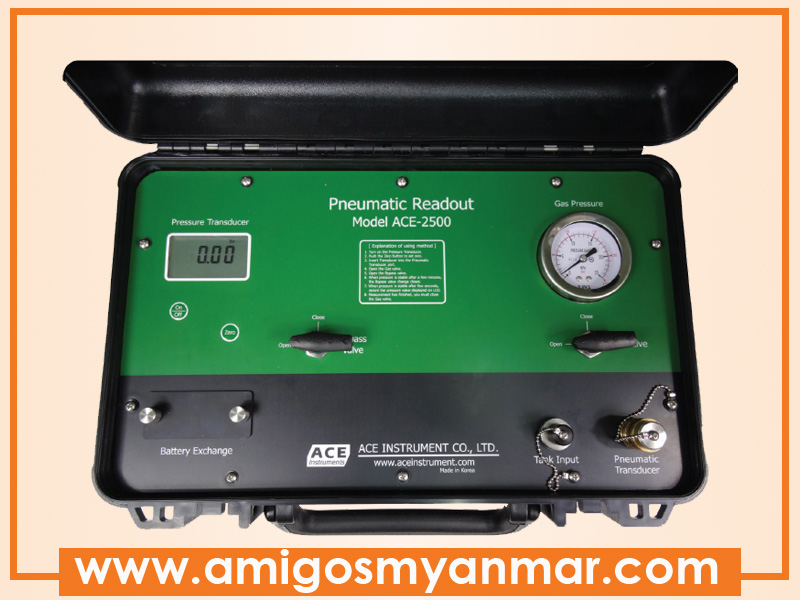

ACE Pneumatic Readout Unit ACE-2500
Brand : ACE
Model : ACE-2500
Country : Korea
Model : ACE-2500
Country : Korea
ACE-2500 pneumatic readout is easily connected through on touch coupler of pneumatic sensor.
The nitrogen gas pressure acting on the sensor can be measured up to maximum of 20 bar.
ACE-2500 pneumatic readout consists of output device and pressure sensors to measure the gas pressure and nitrogen gas thank inside of the shock resistance water-proofing case.
Contact Us
09-5025972, 09-443087709, 09-777258535, 09-254629088, 09-403997619
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Applied sensor | : | Pneumatic sensor |
| Measurement range | : | 0~20bar |
| Resolution | : | Gage-dependent |
| Accuracy | : | 0.1% FSR |
| Operating temperature | : | 0~50C |
| Operating humidity | : | Less than 80% R.H |
| Display | : | 15mm 4 digit LCD |
| Power | : | 9VDC/alkaline battery |
| Battery Life | : | 50 hours continuous |
| Dimensions | : | 185x300x450mm |
| Weight | : | 10kg |
