ACE Portable Tilt Meter

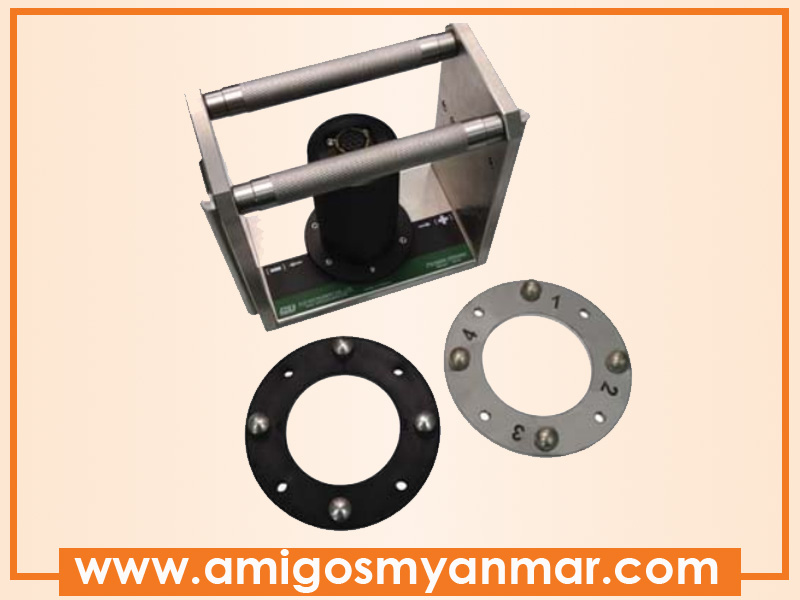

Model 5410, portable tiltmeter consists of a portable tiltmeter with an accelerometer and tilt plates mounted on the structure. Model 5410, portable tiltmeter has built in 1axis accelerometer. Model 5410 is not affected by the impulse or the vibration because it is consisted of the accelermeter, and provides the superior resolution and the highest precision. Model 5410 is designed as highly elegant and waterproof product to measure the surface displacement by installing together the tilt plate horizontally or vertically on the place that the angle displacement is expected. As stainless steel of basic material is precisely processed, and aluminum case is anodized, so semi-permanent measurement is possible. The portable tiltmeter is connected to the readout unit and is positioned on the tilt plate. Tilt reading is recorded and then the portable tiltmeter is rotated 180 degrees to take a second reading. The two readings are averaged to eliminate sensor offset. The portable tiltmeter outputs 0 to direct current 5 voltages corresponding to a tilt reading.
