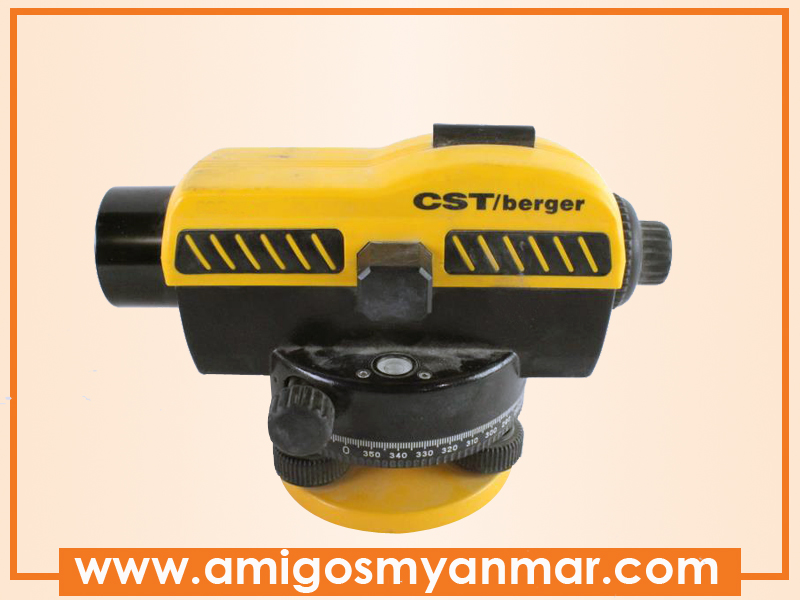

CST Berger Automatic Level SAL-32
Brand : CST/ Berger
Product SKU : SAL-32
Country : China
Product SKU : SAL-32
Country : China
Circular vial with penta prism - Fine motion knobs on both sides with friction braked rotation, endless horizontal drive - Large focussing knob - Target collimator - Graduated circle with either 360 degrees (or) 400 gons - Compensator lock (transport lock)
Contact Us
09-5025972, 09-400980831
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Telescope | ||
| Image | : | Erect |
| Field of View | : | 1⁰20’ |
| Length | : | 8’’ (202mm) |
| Stadia ratio | : | 100 |
| Shortest focusing distance | : | 1’ (0.3m) |
| Compensator | ||
| Leveling range | : | +/- 15’ |
| Magnet dampening | : | Yes |
| Circle graduation | : | 1⁰ or 1 gon |
| Water resistant | : | Yes |
| Instrument net weight | : | 1.8 kg (4lbs) |
| Mounting thread | : | 5/8’’ x 11 |
| Magnification | : | 32 x |
| Unit of measure | : | Degrees |
| Levelling accuracy | : | 1/16’’@100’ (1,6mm/30m) |
| Working range | : | 400’ (120m) |
| Angular accuracy | : | 1⁰ |
| Width | : | 70.0mm |
| Clear Obj aperture | : | 40mm |
| Setting accuracy | : | +/- 0.3’’ |
| Standard deviation | : | 1.0 mm (for 1km double-run leveling) |
