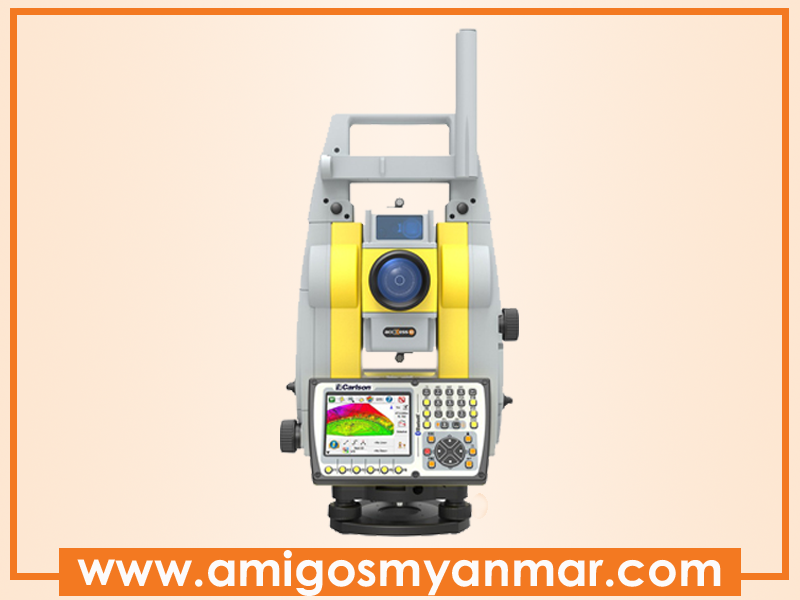

Geomax Total Station Zoom-80S
Product SKU : Zoom 80 S
Country : Switzerland
Find your target, follow it and measure with constant accuracy – the three steps you re-peat continously with every single measurement. Now fully automatically done by your total station incorporating the new STReAM technology, that “works when you do”.
NavLight
The NavLight fitted as standard in the telescope, is a practical alignment aid for speeding up staking-out work. The flashing red and yellow lights guide the rodman quickly andexactly into the line of sight.
accXess™ EDM Technology
GeoMax’s accXess EDM Technology provides class-leadingreflectorless measurements upto 1,000 m. The extra smalllaser footprint and sophisticatedsignal processing technology,ensures you maximumaccuracy regardless of thedistance or conditions.
Laser Plummet
The laser plummet built into the Zoom80 total station delivers you accurate and easy centering every time. The bright laser beam is easily visible and eliminates time consuming procedures required with an optical plummet. You win atevery set-up.
Contact Us
09-5025972, 09-400980831
This email address is being protected from spambots. You need JavaScript enabled to view it.
| Angle measurements | ||
| Accuracy | : | 1” (0.3 mgon), 2” (0.6 mgon), 5” (1.5 mgon) |
| Display resolution | : | 0.1” (0.1 mgon) |
| Method | : | Absolute, continuous, diametrica |
| Compensation | : | Quadruple axis |
| Distance measurements | ||
| Prism | : | 3,500 m / 1 mm + 1.5 ppm |
| Long-range | : | 10,000 m / 5 mm + 2 ppm |
| Reflectorless | : | 1,000 m / 2 mm + 2 ppm * |
| Interfaces | ||
| Keyboard | : | Dual with 34 keys, illuminated |
| Display | : | ¼ VGA colour LCD, touch screen |
| Data recording | : | Removable CF-card |
| Bluetooth | : | Device Class II, long-range |
| Interface | : | Serial & external power |
| Power supply | ||
| Internal battery | : | Removable Li-Ion 4.4 Ah / 7.4 V |
| Operating time | : | Typically 6 – 8 h |
| External power | : | 11.5 V to 13.5 V DC |
| Physical Specification | ||
| Weight | : | 5.5 kg when fully equipped |
| Operating temp. | : | – 20°C to 50°C |
| Storage temp. | : | – 40°C to 70°C |
| Protection class | : | sIP54 dust- and waterproof |
| Humidity | : | 95 %, non-condensing |
| Handheld | ||
| Operating system | : | Microsoft Windows Mobile® |
| Memory | : | Up to 16 GB |
| Ports | : | Serial, USB, expansion slot for long-range Bluetooth® cap, Bluetooth®, WLAN |
| Operating time | : | Up to 9 hours |
| Weight | : | 2.7 kg (pole, prism, handheld) |
